HAM-VX - 220 VAC POPULAR ROTATOR WITH DCU-1 PATHFINDER DIGI

Hy-Gain | cód: HAM-VX

US$ 1.079,95

Availability: Backordered

We currently have no stock in this product. If you wish to order this product it will be supplied on request. Please confirm the estimated shipping date by email sales@impextechnology.com before payment

Description
Tech Specs

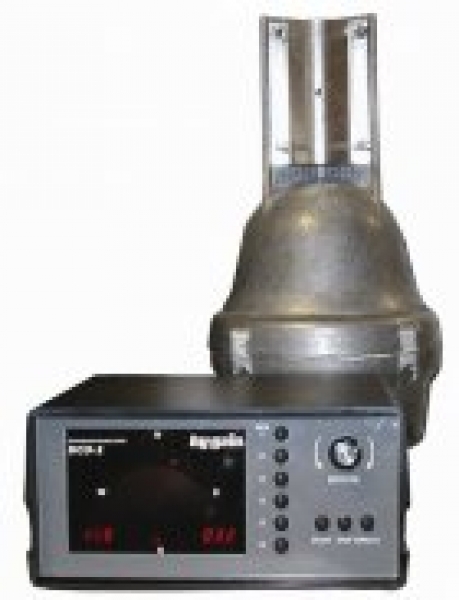

The HAM-VX is the rotator for the new millennium! It is designed for medium communications antenna arrays of up to 15 square feet wind load area. Includes the innovative DCU-1X Pathfinder Control Unit. A new alloy ring gear with 100,000 PSI Tensile strength and a new indicator potentiometer have been added for improved reliability! No more terminal strips! New Cinch connector plus 8-pin plug at control box - no screwdriver required. New powder coated finish. Maximum mast size of 2 1/16 inches. It operates at 110V.

HAM-VX Rotator Specifications
Wind Load Capacity (inside tower)	15 square feet
Wind Load (w/ Mast Adapter)	7.5 square feet
Turning Power	800 pounds
Brake Power	5000 pounds
Brake Construction	Electric Wedge
Bearing Assembly	Dual race/96 ball bearings
Mounting Hardware	Clamp Plates/Steel U-Bolts
Control Cable Conductors	8
Shipping Weight	24 pounds
Effective Movement (in tower)	2800 ft/lbs.
