LJ-205CA - 5 ELEMENT 20M LONG JOHN ON AN 34 (10.4M) BOOM

20/17 Meters, Five Elements. Exclusive 50 Ohm BetaMatch. Excellent DC Ground Stainless steel hardware and clamps. BN-4000 Balun recommended. Manual has setting for both bands.

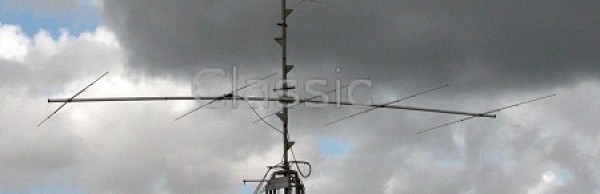

This model is a 5-element beam optimized for maximum forward gain over the entire 17-meter or 20-meter band. Both the antenna and the "beta match" are factory pretuned for maximum performance. The elements are made of taper-swaged tubing. The bracket will fit a 2"-2 1/2" diameter mast. The electrical hardware is made from super strength stainless steel and all element tubing clamps are stainless. 3 2International
3 1Classic

Frequency range 3 0Copyright	:	14 MHz or 18 MHz (at your choice) 3 0Copyright
No. of elements 3 2International	:	5 3 2International
Gain 3 0Copyright	:	6,5 dBd 3 0Copyright
Front-to-Back ratio 3 0Copyright	:	18-31 dB 3 0Copyright
Boom length 3 0Copyright	:	10,36 m. 3 0Copyright
Reflector length 3 1Classic	:	11,12 m. 3 1Classic
Turning radius 3 1Classic	:	7,62 m. 3 1Classic
Wind surface area 3 2International	:	0,84 m2 3 2International
Mast diameter 3 0Copyright	:	32-64 mm 3 0Copyright
Balun 3 0Copyright	:	not included, has to be ordered separately. See related articles below. 3 0Copyright
Max. power 3 0Copyright	:	1,5 kW PEP 3 0Copyright
Weight 3 2International	:	27,2 kg 3 2International
