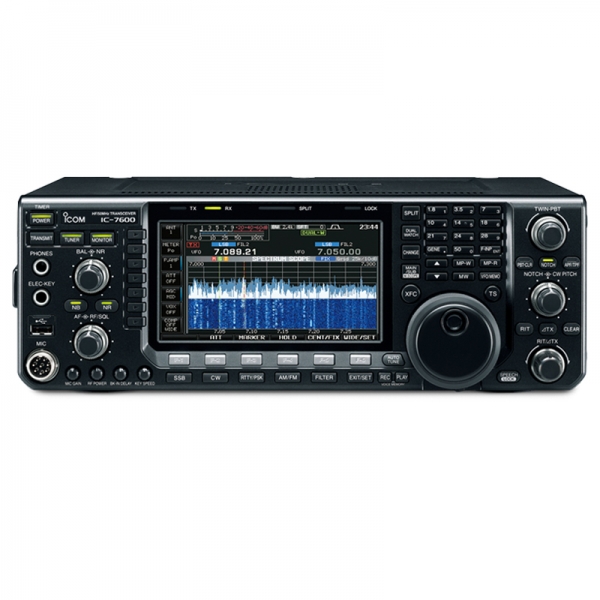

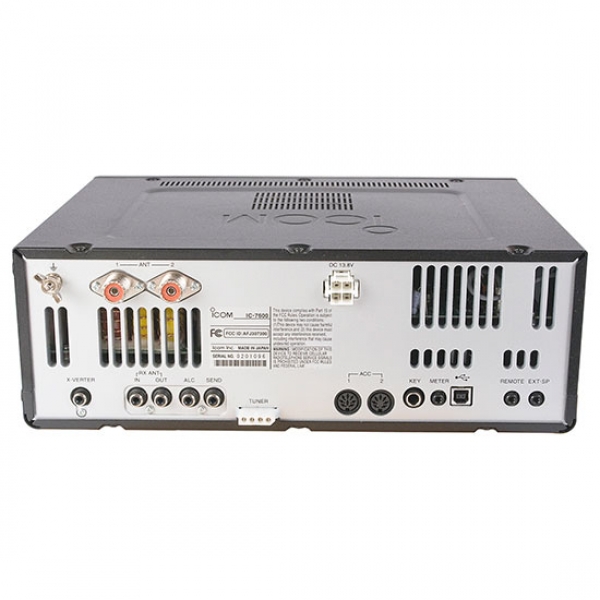

ICOM IC-7600 Base Station HF/50MHz 100W

General

Frequency coverage^*1
U.S.A. Version
Rx
Tx





Europe, UK Version
Rx
Tx



0.030– 60.000 MHz^*2
1.800– 1.999 MHz 3.500– 3.999 MHz
5.3305, 5.3465, 5.3665, 5.3715, 5.4035 MHz^*3
7.000– 7.300 MHz 10.100–10.150 MHz
14.000– 14.350 MHz 18.068–18.168 MHz
21.000– 21.450 MHz 24.890–24.990 MHz
28.000– 29.700 MHz 50.000–54.000 MHz

0.030– 60.000 MHz^*2
1.810– 1.999 MHz 3.500– 3.800 MHz
7.000– 7.100 MHz (Europe version)
7.000– 7.200 MHz (UK version)
10.100– 10.150 MHz 14.000–14.350 MHz
18.068– 18.168 MHz 21.000–21.450 MHz
24.890– 24.990 MHz 28.000–29.700 MHz
50.000– 52.000 MHz
*1 Frequency ranges vary depending on version.
*2 Some frequency ranges are not guaranteed.
*3 Carrier point frequency. USB mode only.

Mode

USB, LSB, CW, RTTY, PSK31, AM, FM

Number of channels

101 (99 regular, 2 scan edges)

Antenna impedance

50Ω unbalanced (Tuner off)

Antenna connector

SO-239×2 and RCA×1

Power supply requirement

13.8V DC ±15%

Temperature range

0°C to +50°C; +32°F to +122°F

Frequency stability

Less than ±0.05ppm
(0°C to +50°C, after warm up)

Frequency resolution

1Hz (minimum)

Power consumption
Tx Max. power

Dimensions (W×H×D)
(projections not included)

340 × 116 × 279.3 mm;
13³⁄₈ × 4⁹⁄₁₆ × 11in

Weight (approx.)

10kg; 22.0lb (approx.)

Transmitter

Output power
SSB, CW, RTTY, PSK31, FM
AM

(continuously adjustable)
2–100W
1–30W

Modulation system
SSB
AM
FM


PSN modulation
Digital low power modulation
Digital phase modulation

Spurious emission
Harmonics


Less than -50dB (HF bands)
Less than -63dB (50 MHz band)

Carrier suppression

More than 63dB

Unwanted sideband suppression

More than 80dB

TX variable range

±9.999 kHz

Microphone impedance

600Ω (8-pin connector)

Receiver

Receive system

Double conversion super-heterodyne system

Intermediate frequencies
1st
2nd


64.455 MHz
36 kHz

Sensitivity (typical)
SSB, CW, RTTY
(BW: 2.4kHz at 10dB S/N)

AM (BW: 6kHz at 10dB S/N)


FM (BW: 15kHz at 12dB SINAD)


1.8–29.999 MHz 0.15μV (Pre-amp 1 ON)
50.0–54.0 MHz 0.12μV (Pre-amp 2 ON)
1.8–29.999 MHz 1.6μV (Pre-amp 1 ON)
50.0–54.0 MHz 1μV (Pre-amp 2 ON)
28–29.990 MHz 0.5μV (Pre-amp 1 ON)
50.0–54.0 MHz 0.32μV (Pre-amp 2 ON)

Squelch sensitivity (Pre-amp: OFF)
SSB, CW, RTTY, PSK31
FM


Less than 3.2μV
Less than 0.3μV

Selectivity (representative value)
SSB(BW: 2.4kHz)

RTTY (BW: 350Hz)

CW (BW: 500Hz)

AM (BW: 6kHz)

FM (BW: 15kHz)


More than 2.4 kHz/–6dB
Less than 3.8 kHz/–60dB
More than 350 Hz/–6dB
Less than 650 Hz/–6dB
More than 500 kHz/–6dB
Less than 900 kHz/–60dB
More than 6.0 kHz/–6dB
Less than 15.0 kHz/–60dB
More than 12.0 kHz/–6dB
Less than 20.0 kHz/–60dB

Spurious and image rejection ratio

More than 70dB (except 50 MHz IF through point)

Audio output power

More than 2.0W at 10% distortion with an 8Ω load

RIT variable range

±9.999 kHz

PHONES connector

3-conductor 6.35 (d) mm (¹⁄₄″)

EXT SP connector

2-conductor 3.5 (d) mm (¹⁄₈″) /8Ω

Antenna Tuner

Matching range
HF band
50 MHz bands

16.7Ω to 150Ω unbalanced
20Ω to 125Ω unbalanced
