A743 - Add-On,Extend D.E. 30m or 40m,0,For A3S

Cushcraft | cód: A743

US$ 196,95
Availability: Backordered
We currently have no stock in this product. If you wish to order this product it will be supplied on request. Please confirm the estimated shipping date by email sales@impextechnology.com before payment
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

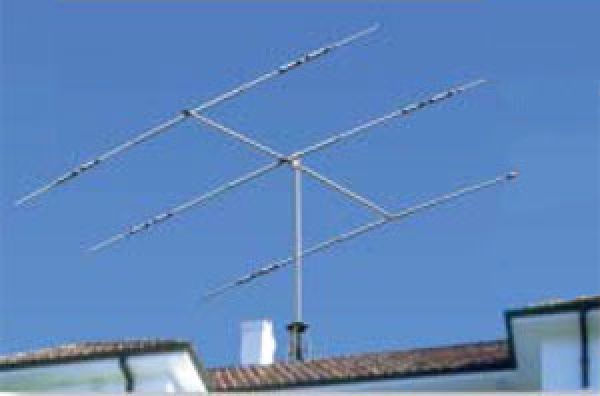

7 MHz/10 MHz kit for A3S

Kits include high power traps with heavy wall fiberglass insulator and all hardware. A simple adjustment allows 30 meter operation.

Band: 7 MHz (40 m)
Driven Element with Adapter kit, ft (m): 33.19 min. 35.33 max. (10.12-10.77)
Windloading ft2 (m2): .58 (.05)
Bandwidth, KHz: 125
Power Rating, Watts: 2000 PEP
Side Rejection, dB: 20
Weight, lb (kg): 3.44 (1.56)

Band: 10 MHz (30m)
Driven Element with Adapter kit, ft (m): 27.12 min. 28.4 max. (8.27-8.66)
Windloading ft2 (m2): .27 (.03)
Bandwidth, KHz: 150
Power Rating, Watts: 2000 PEP
Side Rejection, dB: 20
Weight, lb (kg): 2.29 (1.04)
