T-2XDX - T-2X W/DCU-1 CTRL, 220V

Hy-Gain | cód: T-2XDX

US$ 1.209,95
Availability: Backordered
We currently have no stock in this product. If you wish to order this product it will be supplied on request. Please confirm the estimated shipping date by email sales@impextechnology.com before payment
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

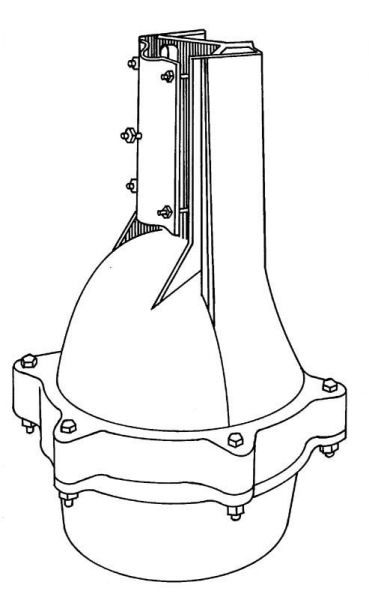

The T-2XDX Tailtwister Series II is designed for medium communications antenna arrays of up to 20 square feet wind load area. Low temperature grease, alloy ring gear indicator potentiometer, ferrite beads on potentiometer wires, new weatherproof AMP connectors plus 8-pin plug at control box, triple bearing race with 138 ball bearings for large load bearing strength, electric locking steel wedge brake, north or south center of rotation scale on meter, low voltage control, max mast of 2 1/16. It comes with a DCU-1X Digital Control Unit. Both operate at 220V.

T-2XDX Rotator Specifications
Wind Load Capacity (inside tower)
20 square feet
Wind Load (w/ Mast Adapter) 10 square feet
Turning Power 1000 pounds
Brake Power
9000 pounds
Brake Construction

Electric Wedge
Bearing Assembly Dual race/138 ball bearings
Mounting Hardware Clamp Plates/Steel U-Bolts
Control Cable Conductors 8
Shipping Weight
28 pounds
Effective Movement (in tower)

3400 ft/lbs.
