CD-45II - METERED ROTATOR W/FRICTION BRAKE 8.5 SF MT N TOWER

Hy-Gain | cód: CD-45II

US$ 429,95
Availability: Backordered
We currently have no stock in this product. If you wish to order this product it will be supplied on request. Please confirm the estimated shipping date by email sales@impextechnology.com before payment
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

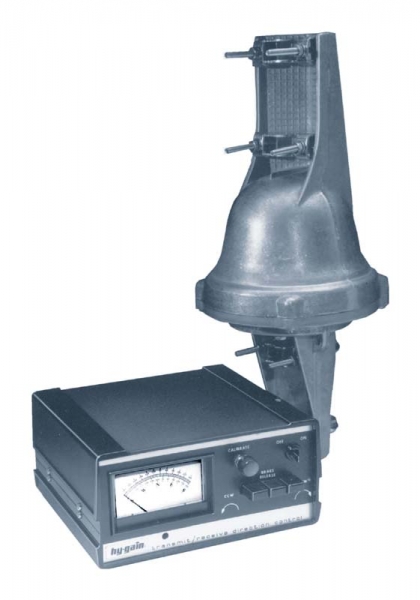

The CD-45II handles 8.5 sq. feet mounted inside a tower, or 5 sq. ft. with mast adapter. Low temperature grease good to -30 F degrees. Bell rotator design gives total weather protection, dual 24 ball bearing races gives proven support.


Die cast ring gear, stamped steel gear drive, heavy duty, trouble free gear train. North center scale, dual lighted directional meter indicator, 8-pin plug/socket on control unit, snap-action control switches. Low voltage control. Safe operation, takes masts to 2 1/16". MSLD light duty lower mast support adapter included. Power requirements: 110V 60Hz.

CD-45II Rotator Specifications
Wind Load Capacity (inside tower)
8.5 square feet
Wind Load Capacity (with mast adapter) 5.0 square feet
Turning Power 600 pounds

Brake Power 800 pounds
Brake Construction

Disc Brake

Bearing Assembly
Dual race/48 ball bearings

Mounting Hardware Plate clamps/Steel U-Bolts

Control Cable Conductors
8
Shipping Weight 22 pounds

Effective Moment (in tower) 1200 ft/lbs.
