AV-640 -

Hy-Gain | cód: AV-640

US$ 394,95
Availability: Backordered
We currently have no stock in this product. If you wish to order this product it will be supplied on request. Please confirm the estimated shipping date by email sales@impextechnology.com before payment
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

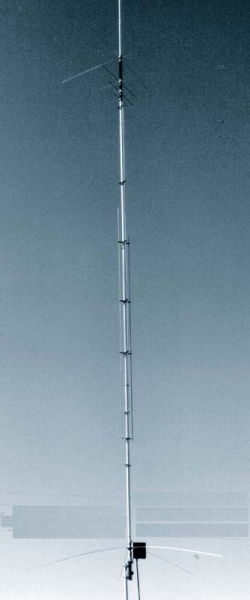

Hy-Gains new AV-640 Patriot HF vertical is the best built, best performing and best priced multiband vertical available today. Make full use of your sunspot cycle with the Patriots low angle signal. The AV-640 uses quarter wave stubs on 6, 10, 12, and 17 meters and efficient end loading coil and capacity hats on 15, 20, 30, 40 meters. Instead of typical lossy can traps, the AV-640 resonators are placed in parallel not in series. End loading of the lower HF bands allows efficient operation with a manageable antenna height.


  • No Ground or Radials Needed
    • Effective counterpoise replaces radials
    • End fed with broadband matching unit


  • Automatic Bandswitching
    • Single coax cable feed

    • Each band is individually tunable
    • Wide VSWR bandwidth


  • Sleek and low-profile
    • Low wind surface area

    • Small area required for mounting
    • Mounts easily on decks, roofs, and patios
  • Built to Last
    • High wind survival

    • Matching unit made from all Teflon(R) insulated wire
  • Hy-Gain Warranty
    • Two year limited warranty
    • All replacement parts in stock

AV-640 Specifications
Bands Covered: 6, 10, 15, 17, 20, 30, and 40 Meters
2:1 VSWR Bandwidth
40 Meter: 150 KHz
30 Meter: 175 KHz

20 Meter:
500 KHz
17 Meter: 500 KHz
15 Meter:
500 KHz
12 Meter: 500 KHz
10 Meter: 1500 KHz

6 Meter:
1500 KHz
VSWR at resonance (typical):
1.5:1
Power Handling (Watts output):
key down 2 minutes
1500W
Vertical Radiation Angle: 17 degrees
Horizontal Radiation Angle: 360 degrees
Height: 25.5 feet
Weight: 10.5 pounds

Wind surface area: 2.5 square feet
Wind Survival:

80 MPH
