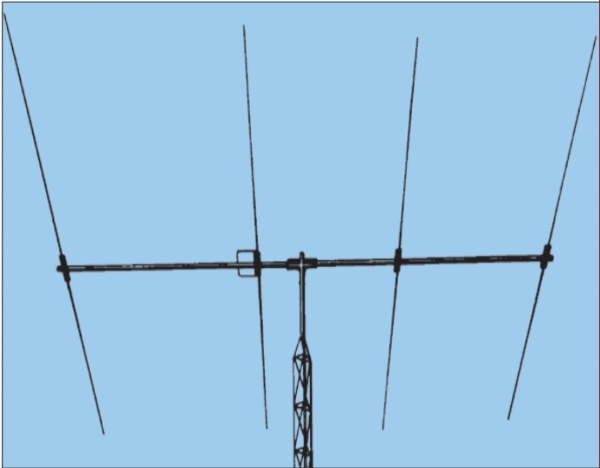

LJ-105CA - 5 ELEMENT 10 M LONG JOHN ON A 24 (7.3M) BOOM

Hy-Gain | cód: LJ-105CA

US$ 286,95
Availability: Backordered
We currently have no stock in this product. If you wish to order this product it will be supplied on request. Please confirm the estimated shipping date by email sales@impextechnology.com before payment
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte
10 Meters, Five Elements, Exclusive 50 Ohm BetaMatch. Excellent DC Ground. Stainless steel hardware and clamps. BN-4000 Balun recommended.
*Power gain(maximum gain setting) ………………………………. 10.75 dBi (8.6 dBd)
*Front-t0-back ratio (maximum F/B setting) ………………….. 36 dB maximum
*-3 dB Beam width …………………………………………………………… 56 degrees
VSWR (at resonance) ……………………………………………………….. less than 1.5:1
Nominal Impedance …………………………………………………………. 50 ohms
Power Rating …………………………………………………………………….. maximum legal
Matching Method ……………………………………………………………… beta
2:1 Band width (broadband setting) ………………………………….. 1700 KHz
