TH-7DX - 7 ELEMNT, TRI-BAND, 10/15/20M

Hy-Gain | cód: TH-7DX

US$ 849,95
Availability: Backordered
We currently have no stock in this product. If you wish to order this product it will be supplied on request. Please confirm the estimated shipping date by email sales@impextechnology.com before payment
Indicar produto
Aumentar fonte Diminuir fonte

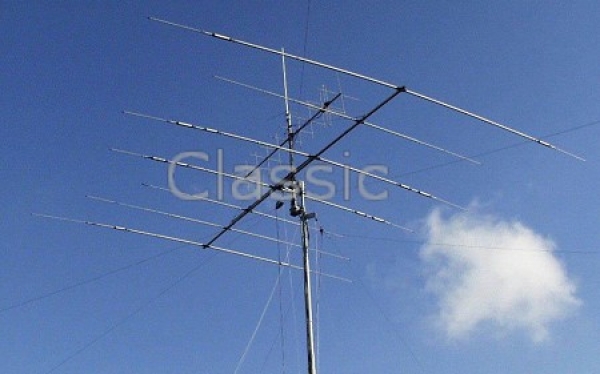

TH-7DX, 7 element, broadband Tri-Band Beam for 10, 15, and 20 Meters. This amazing tri-bander, using a dual driven 7 - element system maintains a VSWR of less than 2:1 across all bands, including ALL of 10 Meters. No compromise on gain performance was needed to achieve this efficiency. A unique combination of trapped and monoband parasitic elements produces a front-to-back ratio of 27 dB. The antenna includes exclusive diecast aluminum, rugged boom-to-mast clamp, and heavy gauge element-to-boom brackets. Comes complete with BN-86 balun.
Hy-Gain beams are strong, light, have little wind resistance and last for years. The world-wide famous Hy-Gain antenna program consists of a series of mono-and multi-band beams, logarithmic-periodic antennas, verticals, wire antennas and a large number of accessories. Hy-Gain is some years since the MFJ group.
This antenna features the famous Hy-Gain Beta Match. Unlike such Fritzel and Mosley have Hygain multiband beams separated traps for 10 and 15m. This optimization is possible per tire.
Frequency: 14/21/28 Mhz
Number Of Elements: 7
Gain: 6.62 Dbd
Front / Back Ratio: 21 Db
Boom Length: 7.32 M
Reflector Length:9.45 M
Turning Circle: 6.10 M
Wind Load :0.87 M2
Mast Diameter :51-64 Mm
Balun: Not Included, Must Be Ordered Separately.
Max.  Power:1.5 Kw PEP
Weight: 34.02 Kg
